This is not a coincidence or a simple aesthetic choice, it is the result of careful acoustic engineering.

What Is a Bass Reflex Port?

A bass reflex system is based on a principle known as Helmholtz resonance.

The volume of air inside the enclosure acts as a spring, while the air contained within the reflex port acts as a moving mass. Together, they form a resonant system that can efficiently reinforce low frequency output around the tuning frequency of the enclosure.

This phenomenon is commonly encountered in everyday life. For example, when you blow across the neck of an empty bottle, the air inside the bottle resonates and produces a tone. A bass reflex enclosure applies the same physical principle in a precisely engineered way to extend low frequency performance.

A bass reflex port is a tuned opening in a loudspeaker enclosure that allows air to move in and out. When working correctly, it enables the loudspeaker to reproduce low frequencies at very low distortion levels, extending the bass response and improving overall efficiency. The key is keeping the air movement in the port smooth and controlled.

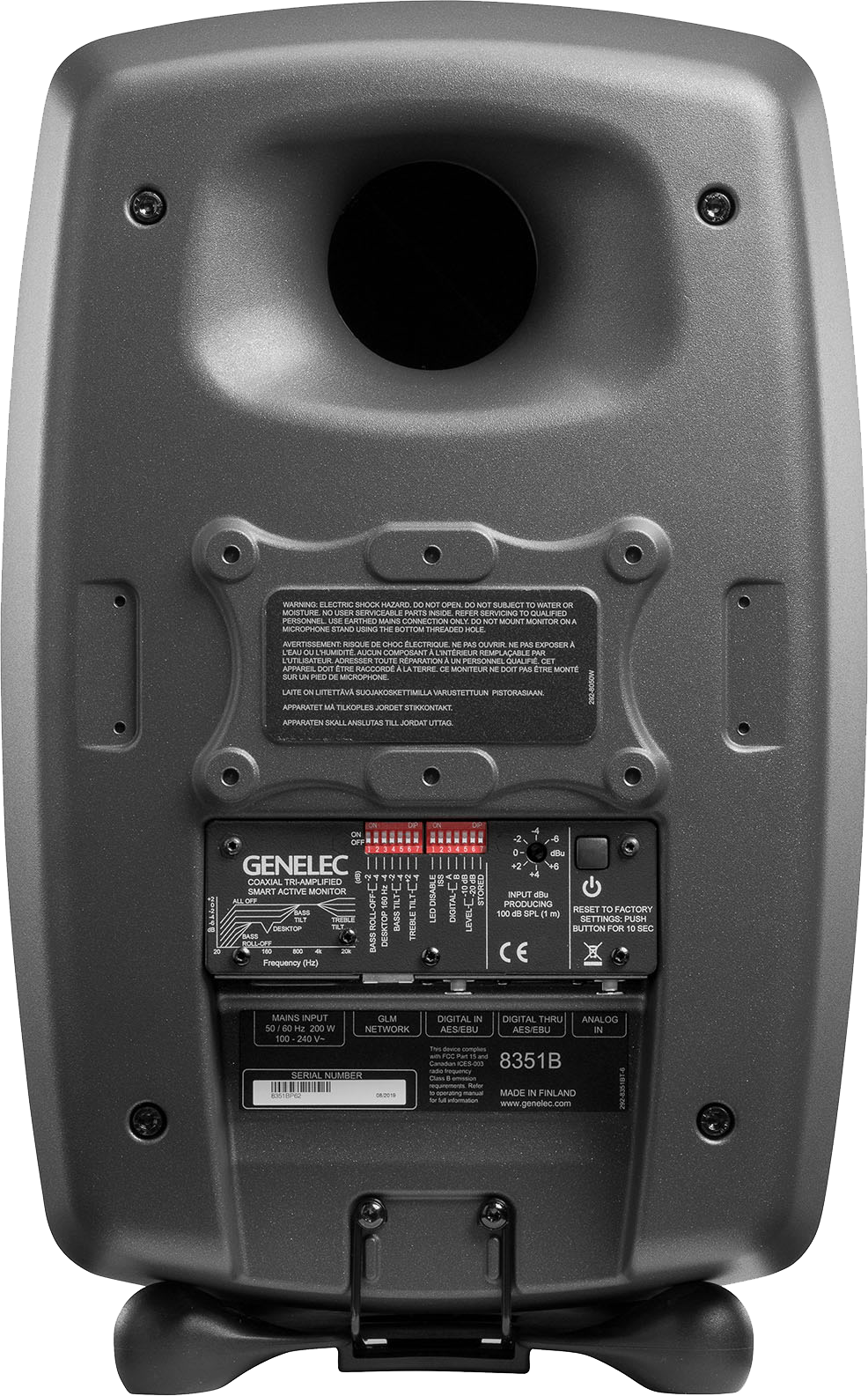

Why Place It at the Rear?

There are several compelling reasons to locate the port at the back of the enclosure:

1. Maximised Waveguide (DCW) Area on the Front

By moving the port to the rear, the entire front baffle can be dedicated to the Directivity Control Waveguide (DCW). This allows for a larger, more effective waveguide design.

2. Minimised Acoustic Diffraction

With no holes, vents, or slots on the front of the enclosure, acoustic diffraction is significantly reduced. This is particularly important around the tweeter, where diffraction can noticeably colour the sound.

3. Larger Port Opening for Cleaner Airflow

The rear placement allows the port flare to be significantly larger. This ensures laminar (smooth, non-turbulent) airflow even at high sound pressure levels, resulting in lower distortion and higher linearity at bass frequencies.

4. Port Noise and Port Resonance Directed Away from the Listener When air moves rapidly through a port, it can generate noise at frequencies typically 10 to 20 times higher than the port tuning frequency. Additionally, every bass reflex port has an inherent half-wavelength resonance, a physical characteristic that cannot be entirely eliminated. In Genelec designs, damping material is used in the reflex port to reduce this resonance. However, even with damping in place, some residual resonance remains. Since both port noise and port resonance are directional in nature, facing the port towards the rear of the enclosure ensures that these unwanted artefacts are significantly less audible at the listening position. This is detail makes a real difference in a critical listening environment.


How Far from the Wall Should You Place Your Monitor?

Since the port is at the rear, 50 mm (2 in) from the wall is needed for it to function properly. This ensures the bass reflex system can operate at full capacity without restriction.

A Note on the M Series: Downward-Facing Ports

The M Series takes a slightly different approach with the patent-pending Laminar Integrated Port (LIP™) technology. Here, the ports face downwards, allowing the monitor to be placed close to a wall while still maintaining excellent airflow. The ports are flow-optimised, achieving low distortion even at very high output levels.

A Note on Forward-Facing Reflex Ports

While the rear-facing port is the standard approach in most Genelec monitors, some models particularly the larger main monitors feature forward-facing reflex ports instead.

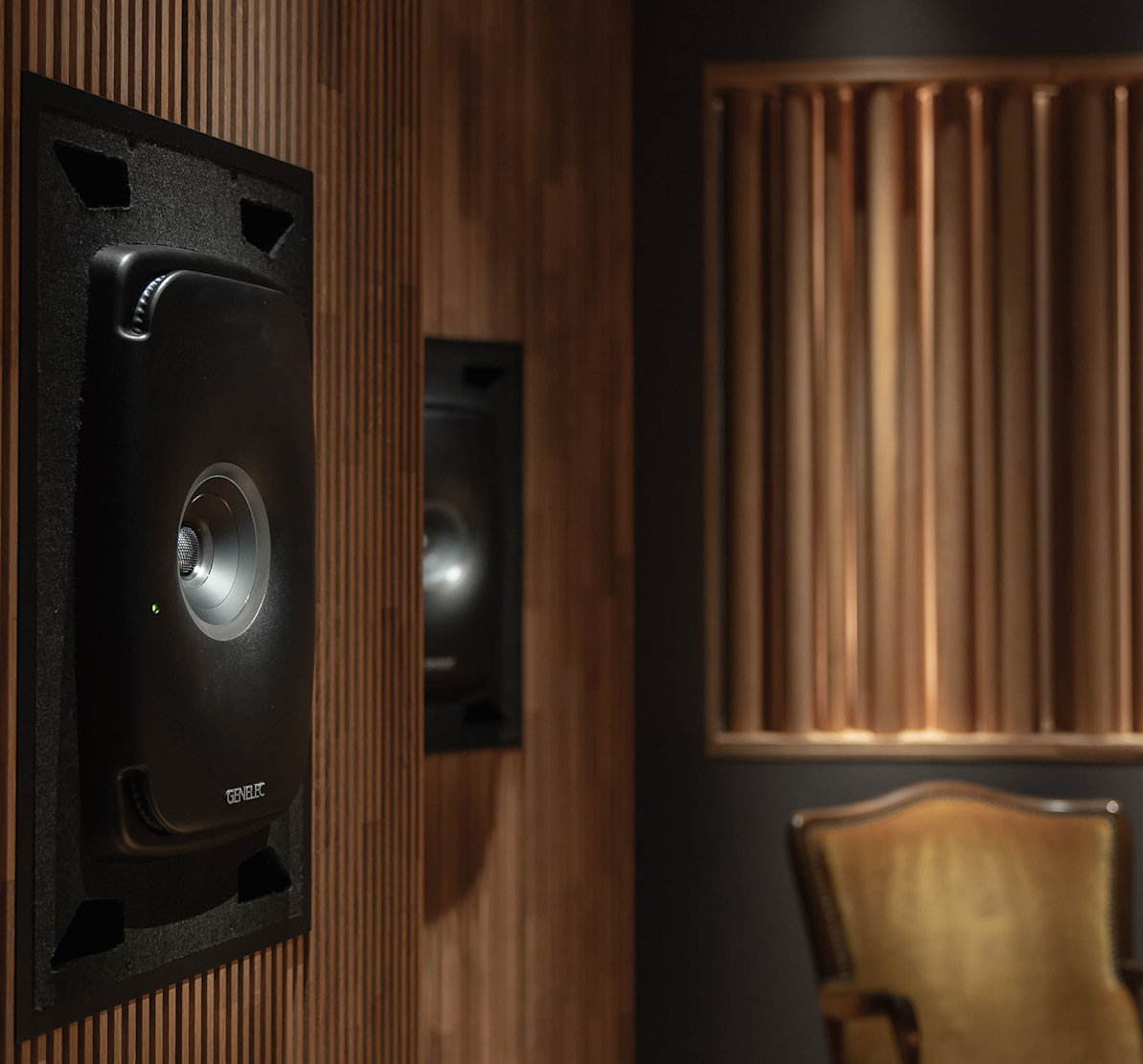

This design choice is primarily driven by installation requirements. Large main monitors are often intended for soffit (flush) mounting, where the monitor is installed directly into a wall surface. In this scenario, a rear-facing port would be impractical or impossible to use effectively.

By placing the ports at the front, these larger models can be flush-mounted seamlessly, with the wall surface forming a continuous plane around the monitor without any compromise to the bass reflex system's performance. The forward-facing port geometry is carefully optimised to ensure clean and linear low frequency reproduction, even at the high output levels that large main monitors are expected to deliver.




Conclusion

The rear-facing bass reflex port is a deliberate and well-reasoned engineering decision. It contributes to a cleaner front baffle, reduced diffraction, lower distortion, reduced port resonance audibility, and a quieter listening environment.

Most Genelec monitors use a rear-facing reflex port, and for those that do, flush mount kits are available to ensure proper installation without compromising port performance.

Some larger main monitors, however, are designed with forward-facing ports from the ground up, making them naturally suited for soffit mounting in professional studio environments. In both cases, the port design is carefully engineered to maintain the same high standards of performance. Whichever direction the port faces, the goal always remains the same: accurate, neutral, and uncoloured sound reproduction. This is just one of the many details that reflect Genelec's unwavering commitment to sonic excellence.
